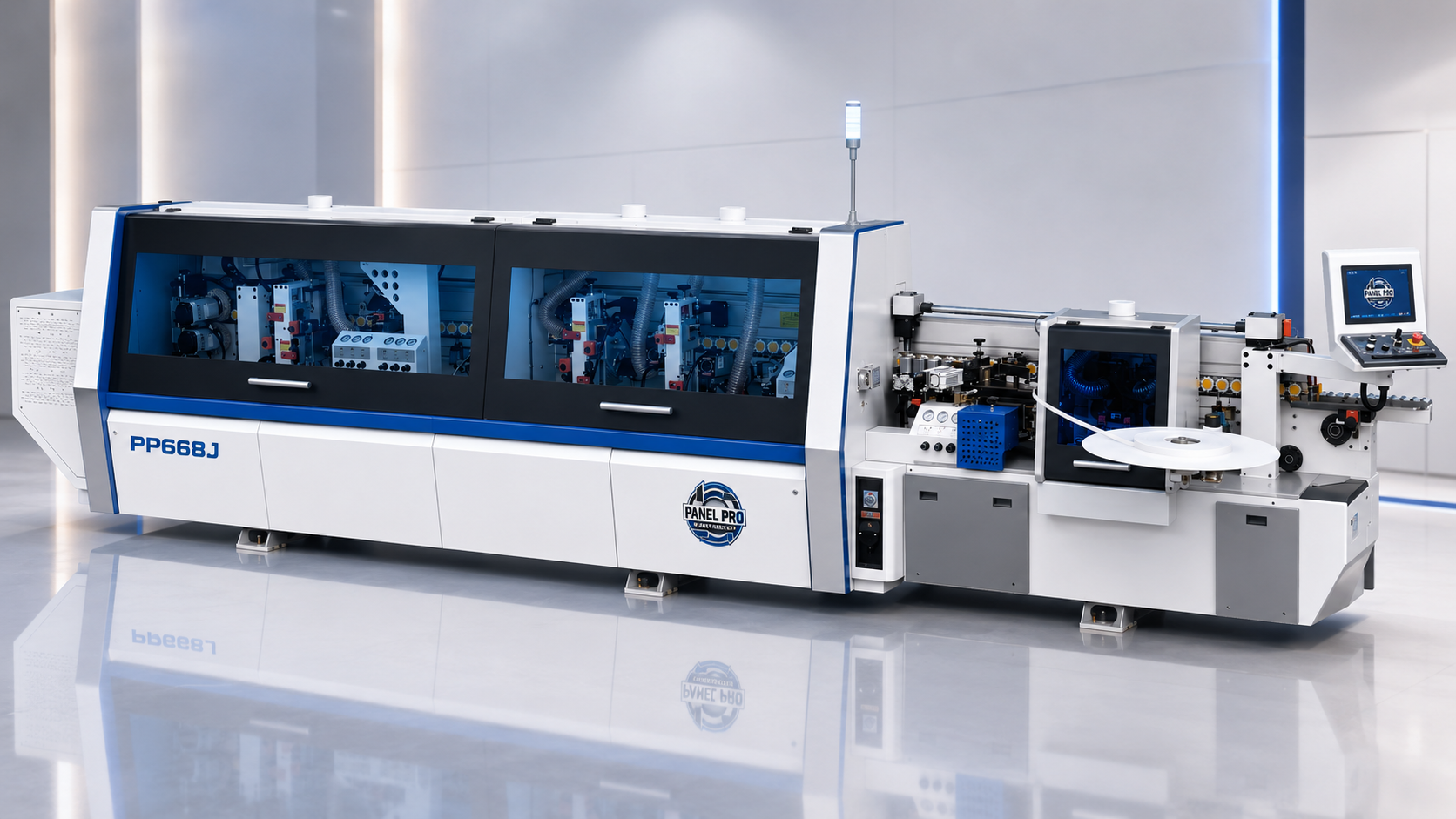

Auto Edge Bander PP-668J
The PP-668J Pre-Milling Edge Bander is a high-performance automatic edge banding machine designed for furniture and panel processing industries. Equipped with a pre-milling unit, it ensures smooth panel edges before banding, resulting in superior bonding quality and a premium finish. With a feeding speed of up to 23 m/min, the machine delivers high productivity, accuracy, and reliability for modern woodworking production lines.
Function:
 |  |  |  |  |  |  |  |  |  |

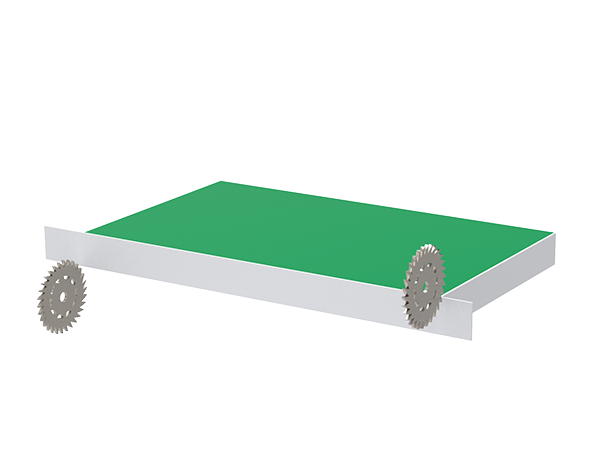

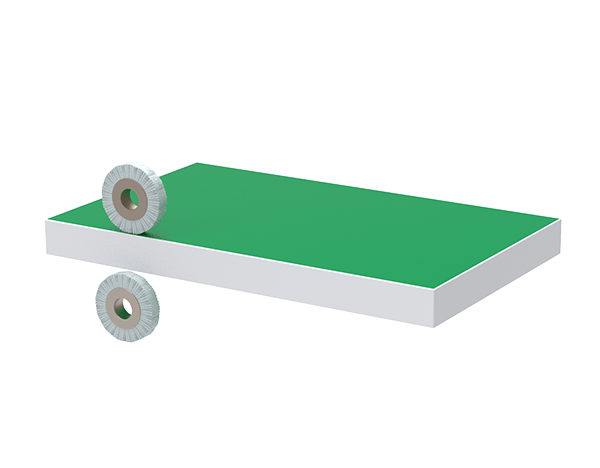

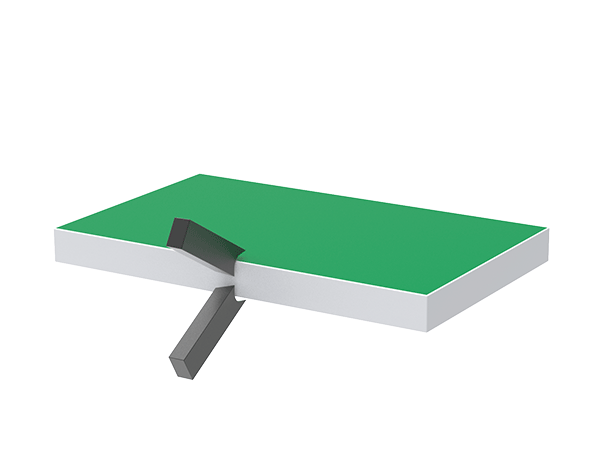

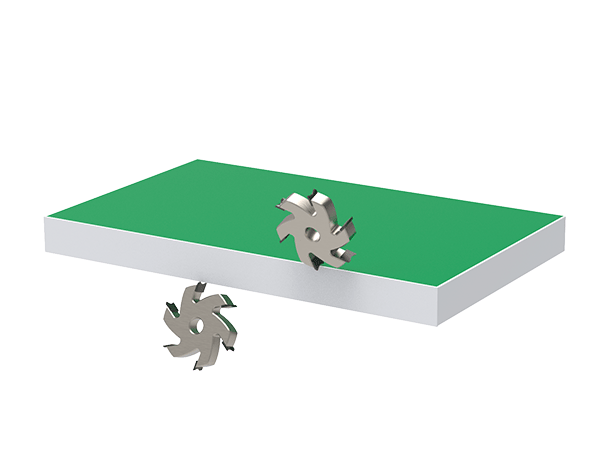

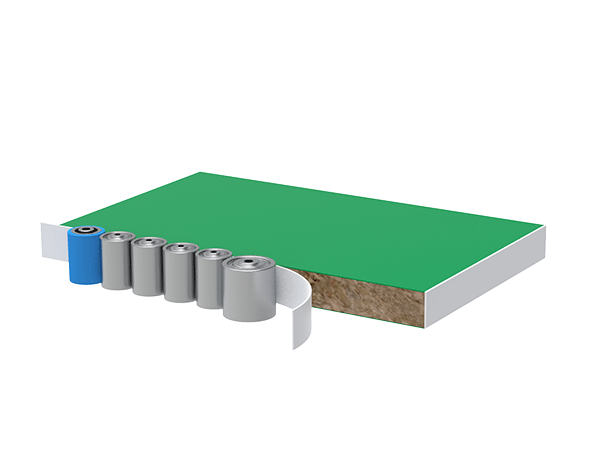

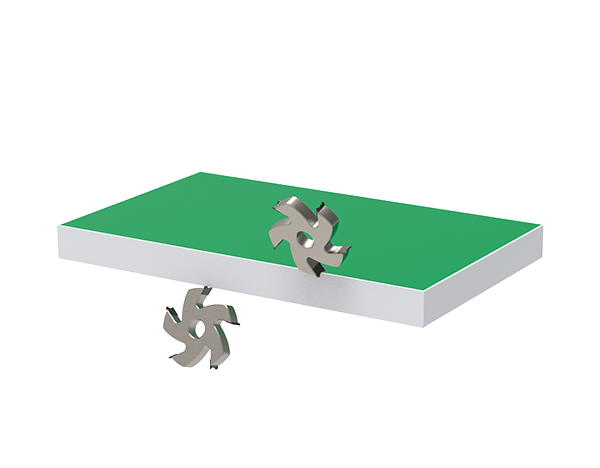

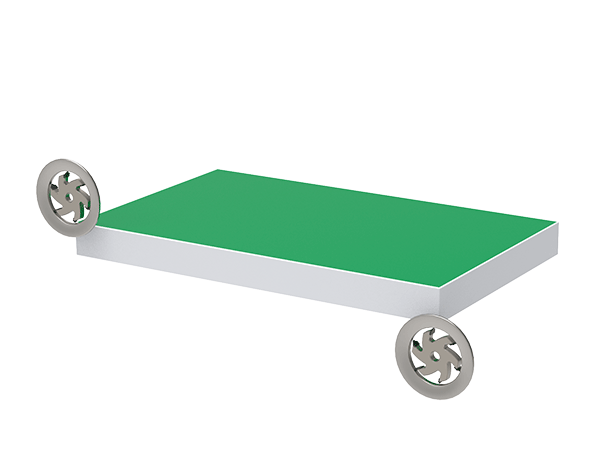

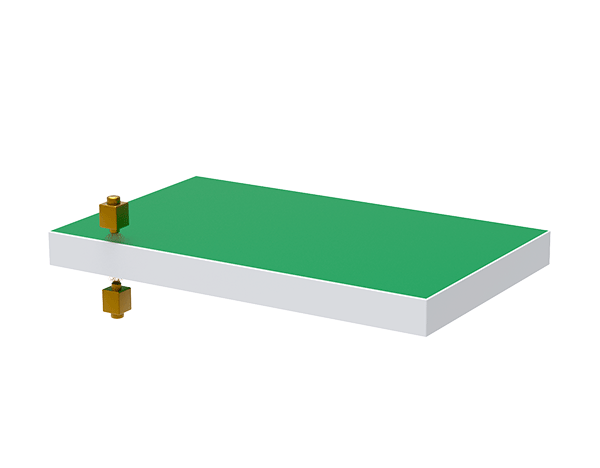

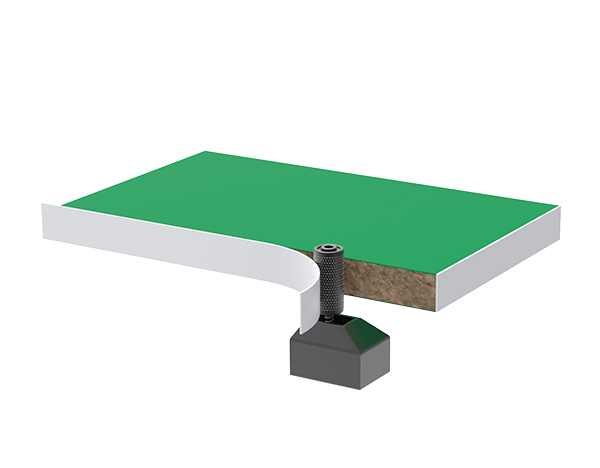

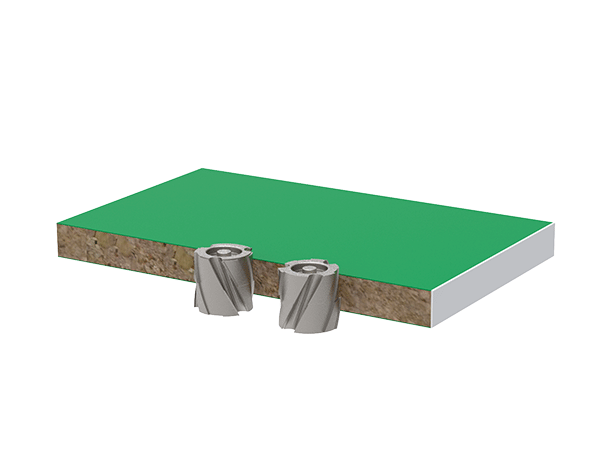

| Pre-milling | Gluing | 6 wheels press | End Trimming | Roughing finishing | Fine finishing | Corner Trimming | Scraping | Cleaning agent | Buffing |
TECHNICAL DATA
| Panel length | ≥120 mm |
| Panel width | ≥80 mm |
| Mini. panel size | 120×80mm, 300×60mm |
| Panel thickness | 09-60 mm |
| Edge tape thickness | 0.4-3 mm |
| Feeding speed | 16/20/24 m/min |
| Dust collector | Φ125mm×4 |
| Control mode | Travel switch |
| Display screen | Touch screen 10” Delta |
| Power supply | 380 V; 50 Hz |
| Air pressure required | 0.7 MPa |
| Total power | 24 kW |
| Net weight | 3,500 kg |
| Overall dimension | 7,700*1,050*1,650 mm |
Applications
Ideal for manufacturing:
- Modular Furniture
- Kitchen Cabinets
- Wardrobes
- Office Furniture
- Interior Decoration Panels
- MDF, Plywood, and Particle Board Furniture
