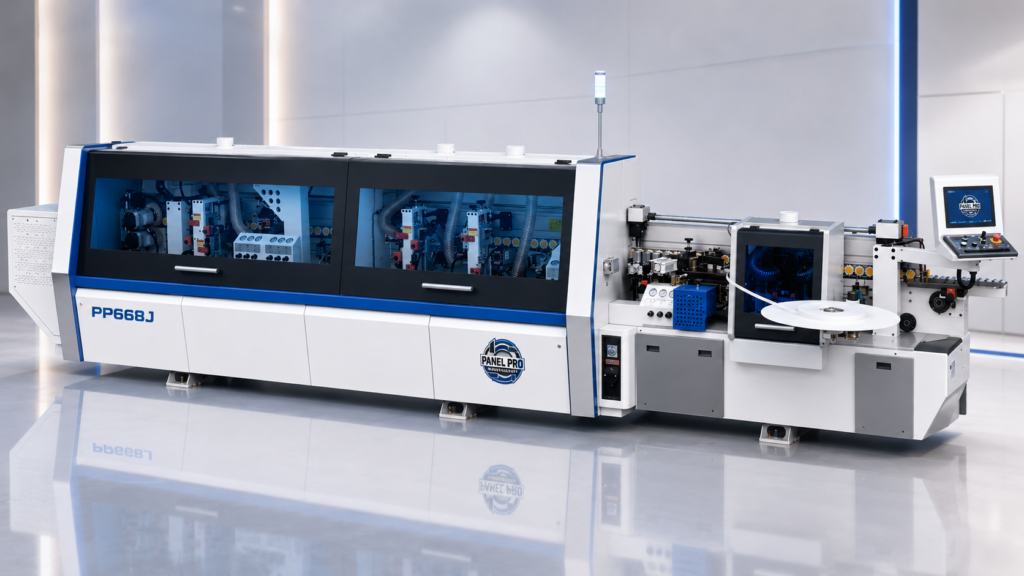

AUTO EDGE PP-668J-S
Popular model full-function edge banding machine
This is a highly popular all-in-one edge banding machine, fully functional and capable of meeting the edge banding needs of most small to medium-sized furniture enterprises.
Feed rate: 18m – 23m/min
Device unit: Separating agent,Pre-milling,Vertical Glue pot(with pre-melter),5-roller pressing,Double-rail end cutting,Rough Trimming,Fine Trimming,Double-blade corner rounding,Fine scraping,Wire breakage,Flexible flat scraping,Cleaning spray,Buffing(Heavy-duty crawler pressure beam（optional）, heavy-duty column, 24-inch industrial control screen)
Equipment highlights
- Intelligent edge banding machine industrial control system.
- Double-Blade Corner rounding – used for trimming arcs.
- Heavy-duty belt pressure beam (optional)
- Compatible with the pre-melt device Adapted for PUR glue injection System-controlled adjustment of glue quantity Features glue-throwing function.
- Pre-melter device-Advantages Overview
Technician Data
| Model | PP-668J-S |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Min panel size | 200mm×80mm |
| Panel thickness | 10-60mm |
| Edge tape thickness | 0.4-3mm |
| Feeding speed | 16/20/24m/min |
| Total power | 20kw |
| Overall dimension | 7300*1050*1750mm |
| Net weight | 3,670KG |
