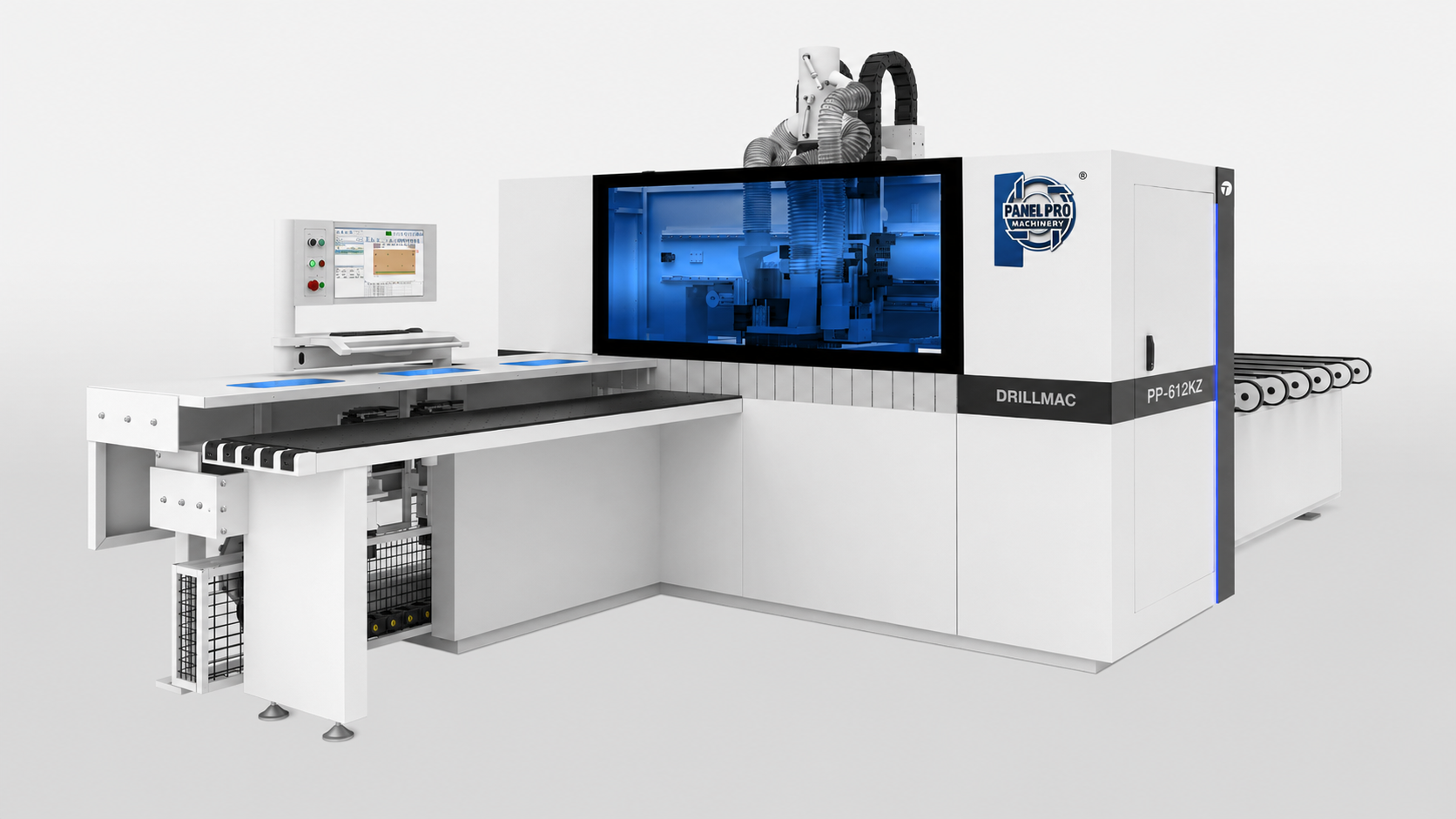

CNC DRILL PP-612KZ
| Model | PP-612KZ |
| Panel size | Thickness：10-60mm Width：30-1220mm Length： 200- 2800mm |
| Panel size（Right） | Width: 30-650mm |
| Control system | SYNTECH |
| Max speed（X/U/Y/Z） | 135/135/75/30m/min |
| Total power | 24KW |
| Rotation speed | 5000rpm |
| Top vert.drill | 12 |
| Top horiz. drill qty | X: 2×2 + Y: 2×2 |
| Bottom vert.drill | 9 |
| Spindle power | 3.5kw×1 / 3.5kw×1 + ATC 4 Pics |
| Machine size | 7440×4620×2620mm |
