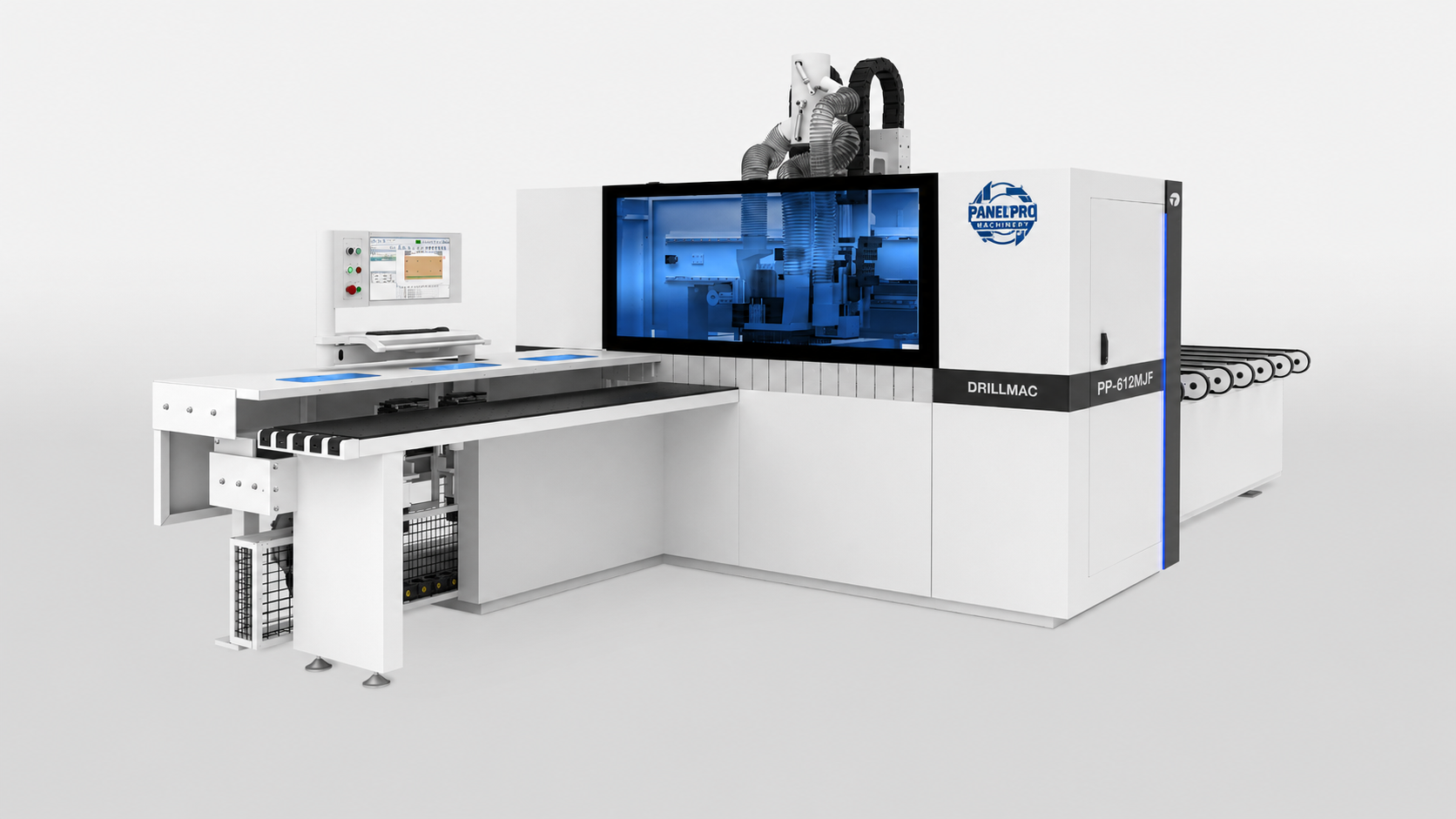

CNC DRILL PP-612MJF
Technician Data
| Model | PP-612MJF |
| Machine Size | 5050L x 2790W x2200H |
| Total Power | 19.7kw |
| Upper Vertical Drill | 12 |
| Bottom Vertical Drill | 9 |
| Horizontal Drill | 8 |
| Spindle Motor | 1 |
| Panel Length | 70-2800 |
| Panel Width | 35-1200(35-50mm L≤1000) |
| Panel Thickness | 9-60mm |
| Input Voltage | 380V/50Hz |
| Working Pressure | >0.7-0.8Mpa |
| Weight | about 3500kg |
